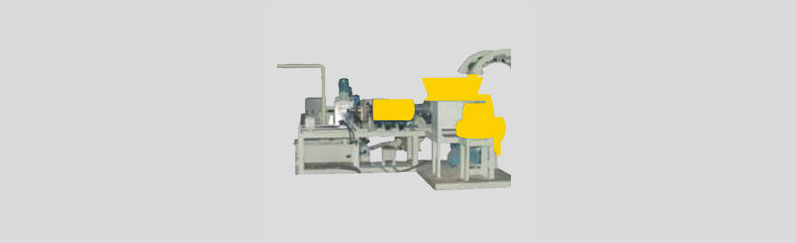

Pelletizing Lines
FOR FILLER / PVC / TPR / EVA Ashirwad Engineering is one of the trusted Manufacturers and Exporters of Pelletizing Lines, which are designed with precision by experts. Our Pelletizing Lines are hugely popular among clients for providing hassle free functioning and effective results at affordable prices. PELLETIZING LINE
The Pelletizing Lines has proved a big boon to several medium and large rubber magnetic industries. Incorporating international standard technological features, it symbolizes high technology class among Indian Kneaders, by giving higher outputs, through perfect process control. Dispersion Mixer can be employed in a wide range of material mixing, ranging from low viscosity adhesives to high viscosity rubber.
PELLETIZING LINES MADE FROM
- » Mild Steel
- » Alloy Steel
- » Stainless Steel
PELLETIZING LINES USED FOR
- » Making master batches & compounding EVA, TPR, LD, LLD, HD, HIPS, MBS and PVC
- » Providing effective cooling
- » Sending air towards the die by utilizing a blower in air cutting
- » Making woven sack multilayer films, PVC Shoes, shopping & carrier bags, water tanks, VA, TPR, LD, LLD, HD, HIPS, MBS, PVC, PE & PVC cables, cling film and anti block
- » Enhancing efficiency and ability to palletize conventionally sturdy material
- » Removing dust particles
PELLETIZING LINES FEATURES
- » Equipped with screens in order to remove the dust particles
- » Cutting section of the palletize includes a special mechanism
- » Separators to boost up the energy
- » Die face cutter for hassle free functioning
- » Dry pallets can be easily obtained unlike the underwater cutting process
- » Production of pellets compounds, water soluble compounds such as calcium carbonate
PELLETIZING LINES APPLICATIONS
- » Plastic Industries
- » Chemical Industries
- » Rubber Industries
PELLETIZING LINES CAPACITIES
- » 25 Kg/Hr, 35Kg/Hr, 55Kg/Hr, 100Kg/Hr, 150Kg/Hr, 200Kg/Hr
PELLETIZING LINES SPECIFICATIONS
Production Capacity |
Kneader Capacity |
Screw Dia. |
L/ D Ratio |
Main Motor |
Taper Twin Screw Motor |
Die Face Cutter |
Temperature Controller |
Total HP |
Space Required |
AEWPL - 25 |
5 Ltrs. |
45 mm |
15/ 1 |
5 HP |
3 HP AC Variable |
Air Cutter |
3 Point PID |
- | 1.5 x 3.0 mts. |
AEWPL - 70 |
15 Ltrs. |
60 mm |
20/ 1 |
10 HP |
5 HP AC Variable |
Air Cutter |
3 Point PID |
- | 2 x 4.5 mts. |
AEWPL - 100 |
25 Ltrs. |
90 mm |
20/ 1 |
15 HP |
7.5 HP AC Variable |
Air Cutter |
3 Point PID |
- | 2.5 x 7 mts. |
AEWPL - 150 |
35 Ltrs. |
100mm |
20/ 1 |
20 HP |
7.5 HP AC Variable |
Air Cutter |
3 Point PID |
- | 3 x 9 mts. |
AEWPL - 350 |
75 Ltrs. |
125 mm |
20/ 1 |
30 HP |
10 HP AC Variable |
Air Cutter |
3 Point PID |
- | 4 x 10 mts. |
AEWPL - 700 |
125 Ltrs. |
160 mm |
20/ 1 |
50 HP |
15 HP AC Variable |
Air Cutter |
4 Point PID |
- | 4,5 x 15 mts. |
AEWPL - 1200 |
170 Ltrs. |
180 mm |
20/ 1 |
60 HP |
25 HP AC Variable |
Air Cutter |
5 Point PID |
- | 5.5 x 25 mts. |
